Infusion Bags
InfuLine – PVC, EVA & PP Infusion Bags
Infusion Bags are designed to be filled with pharmaceutical / medical solutions
InfuLine Infusion Bags are made with medical-grade soft PVC (DEHP-free) or EVA (Ethylene Vinyl Acetate) or PP (Polypropylene) film materials. It’s highly transparent, flexible, lightweight, and provided with two separate ports for injection and infusion. InfuLine IV bags are highly compatible with all standard IV infusion and transfer sets and meet the highest ecological and drug compatibility standards.
Specifications
| Product Type | Infusion Bags |
|---|---|
| Product | Infusion Bag |
| Material | PVC (Non-DEHP) / EVA (Ethylene Vinyl Acetate) / PP (Polypropylene) |
| Volume | 50 mL to 5000 mL |
| Thickness | 0.72mm (can be customized) |
| Inlet Diameters | 6mm to 8mm (can be customized) |
| Tube Length | 4cm to 12cm (can be customized) |
| Sterility | Sterile / Non-sterile |
| Sterilization | ETO / Gamma / Steam |
| Usability | For single use only |
| Port / Connector | Twist-off PVC Port, Injection Port, Spike Port, Plugging Devices |
| OEM | OEM available |
Features
-
Capacity: 50 mL to 5000 mL with one or two tubes
-
Made-up of Medical Grade Soft PVC (DEHP-free) / EVA (Ethylene Vinyl Acetate) / PP (Polypropylene) Films
-
Compatible to moisture / steam sterilization
-
Interval (Pitch) between stopper and twist-off is 25mm and 40mm.
-
Clear Transparency, Flexible
-
Prevent air in-take
Uses
-
IV Solutions
-
Rehydration Solutions
-
Anticoagulant Solutions
-
Infusion / Transfusion
-
Media Culture
-
Dialysis
-
Veterinary solution
-
Urology, and other applications.
Ordering Information - Infusion Bags (PVC (DEHP-free))
| Part No. | Description | Connectors | Package |
|---|---|---|---|
| ILPVC50 | InfuLine Infusion Bag, PVC, 50 mL | Injection Port, Twist-Off Port / Spike Port | 800 /carton |
| ILPVC100 | InfuLine Infusion Bag, PVC, 100 mL | Injection Port, Twist-Off Port / Spike Port | 800 /carton |
| ILPVC150 | InfuLine Infusion Bag, PVC, 150 mL | Injection Port, Twist-Off Port / Spike Port | 800 /carton |
| ILPVC200 | InfuLine Infusion Bag, PVC, 200 mL | Injection Port, Twist-Off Port / Spike Port | 800 /carton |
| ILPVC250 | InfuLine Infusion Bag, PVC, 250 mL | Injection Port, Twist-Off Port / Spike Port | 800 /carton |
| ILPVC500 | InfuLine Infusion Bag, PVC, 500 mL | Injection Port, Twist-Off Port / Spike Port | 500 /carton |
| ILPVC1000 | InfuLine Infusion Bag, PVC, 1000 mL | Injection Port, Twist-Off Port / Spike Port | 400 /carton |
| ILPVC1500 | InfuLine Infusion Bag, PVC, 1500 mL | Injection Port, Twist-Off Port / Spike Port | 400 /carton |
| ILPVC2000 | InfuLine Infusion Bag, PVC, 2000 mL | Injection Port, Twist-Off Port / Spike Port | 250 /carton |
| ILPVC3000 | InfuLine Infusion Bag, PVC, 3000 mL | Injection Port, Twist-Off Port / Spike Port | 250 /carton |
| ILPVC5000 | InfuLine Infusion Bag, PVC, 5000 mL | Injection Port, Twist-Off Port / Spike Port | 100 /carton |
Ordering Information - Infusion Bags (EVA)
| Part No. | Description | Connectors | Package |
|---|---|---|---|
| ILEVA50 | InfuLine Infusion Bag, EVA, 50 mL | Injection Port, Twist-Off Port / Spike Port | 800 /carton |
| ILEVA100 | InfuLine Infusion Bag, EVA, 100 mL | Injection Port, Twist-Off Port / Spike Port | 800 /carton |
| ILEVA150 | InfuLine Infusion Bag, EVA, 150 mL | Injection Port, Twist-Off Port / Spike Port | 800 /carton |
| ILEVA200 | InfuLine Infusion Bag, EVA, 200 mL | Injection Port, Twist-Off Port / Spike Port | 800 /carton |
| ILEVA250 | InfuLine Infusion Bag, EVA, 250 mL | Injection Port, Twist-Off Port / Spike Port | 800 /carton |
| ILEVA500 | InfuLine Infusion Bag, EVA, 500 mL | Injection Port, Twist-Off Port / Spike Port | 500 /carton |
| ILEVA1000 | InfuLine Infusion Bag, EVA, 1000 mL | Injection Port, Twist-Off Port / Spike Port | 400 /carton |
| ILEVA1500 | InfuLine Infusion Bag, EVA, 1500 mL | Injection Port, Twist-Off Port / Spike Port | 400 /carton |
| ILEVA2000 | InfuLine Infusion Bag, EVA, 2000 mL | Injection Port, Twist-Off Port / Spike Port | 250 /carton |
| ILEVA3000 | InfuLine Infusion Bag, EVA, 3000 mL | Injection Port, Twist-Off Port / Spike Port | 250 /carton |
| ILEVA5000 | InfuLine Infusion Bag, EVA, 5000 mL | Injection Port, Twist-Off Port / Spike Port | 100 /carton |
Ordering Information - Infusion Bags (PP)
| Part No. | Description | Connectors | Package |
|---|---|---|---|
| ILPP50 | InfuLine Infusion Bag, PP, 50 mL | Injection Port, Twist-Off Port / Spike Port | 800 /carton |
| ILPP100 | InfuLine Infusion Bag, PP, 100 mL | Injection Port, Twist-Off Port / Spike Port | 800 /carton |
| ILPP150 | InfuLine Infusion Bag, PP, 150 mL | Injection Port, Twist-Off Port / Spike Port | 800 /carton |
| ILPP200 | InfuLine Infusion Bag, PP, 200 mL | Injection Port, Twist-Off Port / Spike Port | 800 /carton |
| ILPP250 | InfuLine Infusion Bag, PP, 250 mL | Injection Port, Twist-Off Port / Spike Port | 800 /carton |
| ILPP500 | InfuLine Infusion Bag, PP, 500 mL | Injection Port, Twist-Off Port / Spike Port | 500 /carton |
| ILPP1000 | InfuLine Infusion Bag, PP, 1000 mL | Injection Port, Twist-Off Port / Spike Port | 400 /carton |
| ILPP1500 | InfuLine Infusion Bag, PP, 1500 mL | Injection Port, Twist-Off Port / Spike Port | 400 /carton |
| ILPP2000 | InfuLine Infusion Bag, PP, 2000 mL | Injection Port, Twist-Off Port / Spike Port | 250 /carton |
| ILPP3000 | InfuLine Infusion Bag, PP, 3000 mL | Injection Port, Twist-Off Port / Spike Port | 250 /carton |
| ILPP5000 | InfuLine Infusion Bag, PP, 5000 mL | Injection Port, Twist-Off Port / Spike Port | 100 /carton |
Related Products
Efficient Design - Low dead volumes, high recoveries Closed System Compatible with most standard racking systems Custom Designs Available...
Cellbios provides transfer freezing bags for red blood cell depletion and Volume reduction to acquire concentrated cord blood stem...
CellSol® DMSO Dimethyl Sulfoxide (CH3)2SO or C2H6OS is a clear, odorless, hygroscopic and water-miscible liquid. DMSO freely penetrates the...

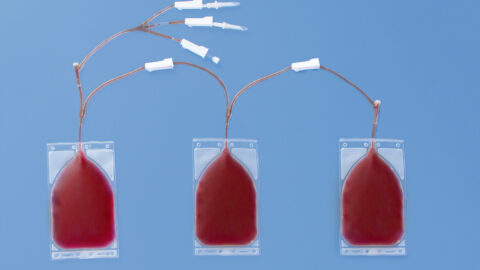

Cell washing set is intended to use for washing the nucleated /stem cells present in the Peripheral/ cord blood...
