TissueStor® Tissue Freezing Bags
TissueStor® Tissue storage bags are an ideal choice to protect tissue samples during cryopreservation at -196°C temperature
TissueStor® Tissue Freezing Bags are designed for the long-term storage of tissues & tissue components, bones, skin, and cartilage at low temperatures ranging from -80°C to -196°C.
TissueStor® Tissue Freezing Bags are made of EVA Film CSES14-02 in various sizes to meet a wide range of applications in tissue storage.
They are very resistant to tearing and puncture, making them the ideal option for archiving and safeguarding cell and tissue samples. They are also provided with additional protection called CellStor® Overwrap Bag which also possesses high cryoresistance and biocompatibility. It can be stable in temperatures from -80°C to -196°C.
Applications
- TissueStor® Tissue Freezing Bags are used by cord blood banks, tissue banks and eye banks for the long term storage of tissues, bones, skin, grafts, cells, cartilage, etc.
- Different types of tissues are stored under refrigeration/cryogenic conditions for therapeutic purposes such as;
- Placenta, umbilical cord and tissue
- Amniotic membraneCornea & sclera
- Wharton’s jelly
- Heart valve
- Limbal stem cells
- Bone marrow biopsy samples and aspirates
- Tendons
- Pancreas islets
- Bones
- Cartilage
- Skins
- Grafts
CellBios® is the first company in the world to offer tissue freezing bags of 30 different sizes and
volumes for various tissue freezing applications
The bags are highly impact and tear resistant even at cryostorage temperatures
Features
- Made of Ethylene vinyl acetate (EVA) film
- Fit for storage in both liquid and vapor phases of liquid nitrogen tanks. Suitable for long term storage at 196°C
- Biocompatible – USP Class VI and ISO 10993 compliant
- Extremely resistant to mechanical strain
- Bags have walls of uniform thickness for homogenous freezing and thawing of samples
- Wide range of bag size choices to preserve a variety of tissue and tissue components
- Compatible with RF and heat sealing processes
- Shelf-life of 36 months
- Sterile and individually packed in Tyvek pouches
Advantages
Cryopreservation
Suitable for long-term storage in liquid nitrogen at low temperatures down to -196°C.
Material & Biocompatibility
TissueStor® Tissue Freezing Bags are made of CellStor® EVA Film CSES14-02 which is biologically inert and making them compatible with variety tissues and tissue grafts.
Sample Visibility
Although the bag material has a matte finish, it is translucent and allows for easy observation of the stored sample through the film.
Additional Protection
TissueStor® Tissue Freezing bags are provided with Overwrap Bags which are biocompatible and serve as an additional protection for the tissue.
Easy Bag Sealing
TissueStor® Tissue Freezing Bags are effortlessly heat sealable and RF sealable. They are compatible with most of the standard lab sealers. CellBios® sealers are also available to seal TissueStor® Tissue Freezing Bag.
Buffer Exchange
Tubing is built into the bag to allow exchange of storage buffer through needle free connectors. Alternate connectors are available on request.
Sterilization
TissueStor® bags are gamma sterilized and helpful in aseptic transfer of tissues and their storage.
TissueStor® Tissue Freezing Bag is available with or without tubing and with or without an Overwrap Bag.
Refer to our CellStor® Overwrap Bags brochure for further information on overwrap bags.
Specification/ Ordering Information

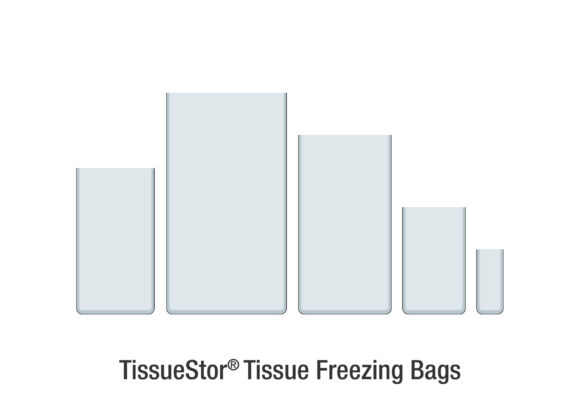

TissueStor® Tissue Freezing Bags
| Part Number | Description | Width x Length (mm) | Tyvek Packing | Primary Packing | Master Packing |
|---|---|---|---|---|---|
| TE30X80S | TissueStor® Tissue Freezing Bag, 30x80 | 30 x 80 mm | 1 /pouch | 24 /case | 120 /carton |
| TE30X90S | TissueStor® Tissue Freezing Bag, 30x90 | 30 x 90 mm | 1 /pouch | 24 /case | 120 /carton |
| TE30X105S | TissueStor® Tissue Freezing Bag, 30x105 | 30 x 105 mm | 1 /pouch | 24 /case | 120 /carton |
| TE40X105S | TissueStor® Tissue Freezing Bag, 40x105 | 40 x 105 mm | 1 /pouch | 24 /case | 120 /carton |
| TE60X105S | TissueStor® Tissue Freezing Bag, 60x105 | 60 x 105 mm | 1 /pouch | 24 /case | 120 /carton |
| TE60X120S | TissueStor® Tissue Freezing Bag, 60x120 | 60 x 120 mm | 1 /pouch | 24 /case | 120 /carton |
| TE60X160S | TissueStor® Tissue Freezing Bag, 60x160 | 60 x 160 mm | 1 /pouch | 24 /case | 120 /carton |
| TE90X105S | TissueStor® Tissue Freezing Bag, 90x105 | 90 x 105 mm | 1 /pouch | 24 /case | 120 /carton |
| TE90X180S | TissueStor® Tissue Freezing Bag, 90x180 | 90 x 180 mm | 1 /pouch | 24 /case | 120 /carton |
| TE100X150S | TissueStor® Tissue Freezing Bag, 100x150 | 100 x 150 mm | 1 /pouch | 24 /case | 120 /carton |
| TE100X180S | TissueStor® Tissue Freezing Bag, 100x180 | 100 x 180 mm | 1 /pouch | 24 /case | 120 /carton |
| TE110x90S | TissueStor® Tissue Freezing Bag, 110x90 | 110 x 90 mm | 1 /pouch | 24 /case | 120 /carton |
| TE120X160S | TissueStor® Tissue Freezing Bag, 120x160 | 120 x 160 mm | 1 /pouch | 24 /case | 120 /carton |
| TE130X200S | TissueStor® Tissue Freezing Bag, 130x200 | 130 x 200 mm | 1 /pouch | 24 /case | 120 /carton |
| TE130X250S | TissueStor® Tissue Freezing Bag, 130x250 | 130 x 250 mm | 1 /pouch | 24 /case | 120 /carton |
| TE135X105S | TissueStor® Tissue Freezing Bag, 135x105 | 135 x 105 mm | 1 /pouch | 24 /case | 120 /carton |
| TE135X200S | TissueStor® Tissue Freezing Bag, 135x200 | 135 x 200 mm | 1 /pouch | 24 /case | 120 /carton |
| TE135X300S | TissueStor® Tissue Freezing Bag, 135x300 | 135 x 300 mm | 1 /pouch | 24 /case | 120 /carton |
| TE140X200S | TissueStor® Tissue Freezing Bag, 140x200 | 140 x 200 mm | 1 /pouch | 24 /case | 120 /carton |
| TE140X300S | TissueStor® Tissue Freezing Bag, 140x300 | 140 x 300 mm | 1 /pouch | 24 /case | 120 /carton |
| TE150X275S | TissueStor® Tissue Freezing Bag, 150x275 | 150 x 275 mm | 1 /pouch | 24 /case | 120 /carton |
| TE180X320S | TissueStor® Tissue Freezing Bag, 180x320 | 180 x 320 mm | 1 /pouch | 24 /case | 120 /carton |
| TE200X150S | TissueStor® Tissue Freezing Bag, 200x150 | 200 x 150 mm | 1 /pouch | 24 /case | 120 /carton |
| TE200X380S | TissueStor® Tissue Freezing Bag, 200x380 | 200 x 380 mm | 1 /pouch | 24 /case | 120 /carton |
| TE210X310S | TissueStor® Tissue Freezing Bag, 210x310 | 210 x 310 mm | 1 /pouch | 24 /case | 120 /carton |
| TE220X180S | TissueStor® Tissue Freezing Bag, 220x180 | 220 x 180 mm | 1 /pouch | 24 /case | 120 /carton |
| TE250X420S | TissueStor® Tissue Freezing Bag, 250x420 | 250 x 420 mm | 1 /pouch | 24 /case | 120 /carton |
| TE300X150S | TissueStor® Tissue Freezing Bag, 300x150 | 300 x 150 mm | 1 /pouch | 24 /case | 120 /carton |
| TE300X500S | TissueStor® Tissue Freezing Bag, 300x500 | 300 x 500 mm | 1 /pouch | 24 /case | 120 /carton |
| TE750X150S | TissueStor® Tissue Freezing Bag, 750x150 | 750 x 150 mm | 1 /pouch | 24 /case | 120 /carton |

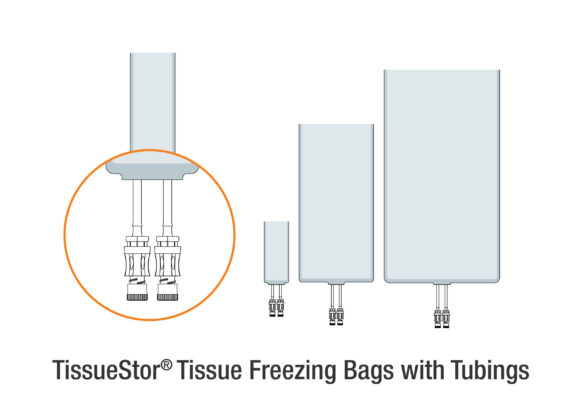

TissueStor® Tissue Freezing Bags with Tubings
| Part Number | Description | Width x Length (mm) | Tyvek Packing | Primary Packing | Master Packing |
|---|---|---|---|---|---|
| TE30X80ST | TissueStor® Tissue Freezing Bag with Tubing, 30x80 | 30 x 80 mm | 1 /pouch | 24 /case | 120 /carton |
| TE30X90ST | TissueStor® Tissue Freezing Bag with Tubing, 30x90 | 30 x 90 mm | 1 /pouch | 24 /case | 120 /carton |
| TE30X105ST | TissueStor® Tissue Freezing Bag with Tubing, 30x105 | 30 x 105 mm | 1 /pouch | 24 /case | 120 /carton |
| TE40X105ST | TissueStor® Tissue Freezing Bag with Tubing, 40x105 | 40 x 105 mm | 1 /pouch | 24 /case | 120 /carton |
| TE60X105ST | TissueStor® Tissue Freezing Bag with Tubing, 60x105 | 60 x 105 mm | 1 /pouch | 24 /case | 120 /carton |
| TE60X120ST | TissueStor® Tissue Freezing Bag with Tubing, 60x120 | 60 x 120 mm | 1 /pouch | 24 /case | 120 /carton |
| TE60X160ST | TissueStor® Tissue Freezing Bag with Tubing, 60x160 | 60 x 160 mm | 1 /pouch | 24 /case | 120 /carton |
| TE90X105ST | TissueStor® Tissue Freezing Bag with Tubing, 90x105 | 90 x 105 mm | 1 /pouch | 24 /case | 120 /carton |
| TE90X180ST | TissueStor® Tissue Freezing Bag with Tubing, 90x180 | 90 x 180 mm | 1 /pouch | 24 /case | 120 /carton |
| TE100X150ST | TissueStor® Tissue Freezing Bag with Tubing, 100x150 | 100 x 150 mm | 1 /pouch | 24 /case | 120 /carton |
| TE100X180ST | TissueStor® Tissue Freezing Bag with Tubing, 100x180 | 100 x 180 mm | 1 /pouch | 24 /case | 120 /carton |
| TE110X90ST | TissueStor® Tissue Freezing Bag with Tubing, 110x90 | 110 x 90 mm | 1 /pouch | 24 /case | 120 /carton |
| TE120X160ST | TissueStor® Tissue Freezing Bag with Tubing, 120x160 | 120 x 160 mm | 1 /pouch | 24 /case | 120 /carton |
| TE130X200ST | TissueStor® Tissue Freezing Bag with Tubing, 130x200 | 130 x 200 mm | 1 /pouch | 24 /case | 120 /carton |
| TE130X250ST | TissueStor® Tissue Freezing Bag with Tubing, 130x250 | 130 x 250 mm | 1 /pouch | 24 /case | 120 /carton |
| TE135X105ST | TissueStor® Tissue Freezing Bag with Tubing, 135x105 | 135 x 105 mm | 1 /pouch | 24 /case | 120 /carton |
| TE135X200ST | TissueStor® Tissue Freezing Bag with Tubing, 135x200 | 135 x 200 mm | 1 /pouch | 24 /case | 120 /carton |
| TE135X300ST | TissueStor® Tissue Freezing Bag with Tubing, 135x300 | 135 x 300 mm | 1 /pouch | 24 /case | 120 /carton |
| TE140X200ST | TissueStor® Tissue Freezing Bag with Tubing, 140x200 | 140 x 200 mm | 1 /pouch | 24 /case | 120 /carton |
| TE140X300ST | TissueStor® Tissue Freezing Bag with Tubing, 140x300 | 140 x 300 mm | 1 /pouch | 24 /case | 120 /carton |
| TE150X275ST | TissueStor® Tissue Freezing Bag with Tubing, 150x275 | 150 x 275 mm | 1 /pouch | 24 /case | 120 /carton |
| TE180X320ST | TissueStor® Tissue Freezing Bag with Tubing, 180x320 | 180 x 320 mm | 1 /pouch | 24 /case | 120 /carton |
| TE200X150ST | TissueStor® Tissue Freezing Bag with Tubing, 200x150 | 200 x 150 mm | 1 /pouch | 24 /case | 120 /carton |
| TE200X380ST | TissueStor® Tissue Freezing Bag with Tubing, 200x380 | 200 x 380 mm | 1 /pouch | 24 /case | 120 /carton |
| TE210X310ST | TissueStor® Tissue Freezing Bag with Tubing, 210x310 | 210 x 310 mm | 1 /pouch | 24 /case | 120 /carton |
| TE220X180ST | TissueStor® Tissue Freezing Bag with Tubing, 220x180 | 220 x 180 mm | 1 /pouch | 24 /case | 120 /carton |
| TE250X420ST | TissueStor® Tissue Freezing Bag with Tubing, 250x420 | 250 x 420 mm | 1 /pouch | 24 /case | 120 /carton |
| TE300X150ST | TissueStor® Tissue Freezing Bag with Tubing, 300x150 | 300 x 150 mm | 1 /pouch | 24 /case | 120 /carton |
| TE300X500ST | TissueStor® Tissue Freezing Bag with Tubing, 300x500 | 300 x 500 mm | 1 /pouch | 24 /case | 120 /carton |
| TE750X150ST | TissueStor® Tissue Freezing Bag with Tubing, 750x150 | 750 x 150 mm | 1 /pouch | 24 /case | 120 /carton |
Note: LxH – Length X Height, OWB – Over Wrap Bag, S – Sterile

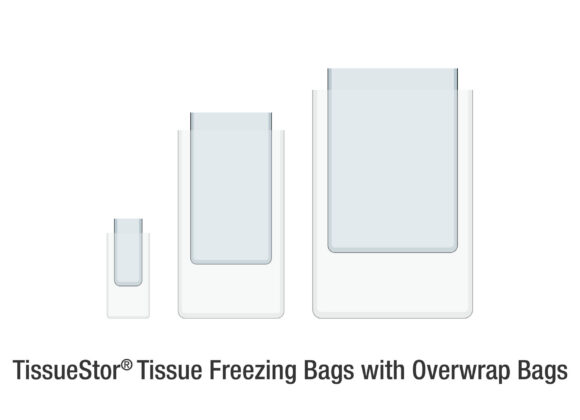

TissueStor® Tissue Freezing Bags with CellStor® Overwrap Bags
| Part Number | Description | TissueStor Width x Length (mm) | Overwrap Width x Length (mm) | Primary Packing | Master Packing |
|---|---|---|---|---|---|
| TE30X80SOWB | TissueStor® Tissue Freezing Bag with Overwrap Bag | 30 x 80 mm | 40 x 90 mm | 24 /case | 120 /carton |
| TE30X90SOWB | TissueStor® Tissue Freezing Bag with Overwrap Bag | 30 x 90 mm | 40 x 105 mm | 24 /case | 120 /carton |
| TE30X105SOWB | TissueStor® Tissue Freezing Bag with Overwrap Bag | 30 x 105 mm | 60 x 160 mm | 24 /case | 120 /carton |
| TE40X105SOWB | TissueStor® Tissue Freezing Bag with Overwrap Bag | 40 x 105 mm | 60 x 160 mm | 24 /case | 120 /carton |
| TE60X105SOWB | TissueStor® Tissue Freezing Bag with Overwrap Bag | 60 x 105 mm | 100 x 180 mm | 24 /case | 120 /carton |
| TE60X120SOWB | TissueStor® Tissue Freezing Bag with Overwrap Bag | 60 x 120 mm | 100 x 180 mm | 24 /case | 120 /carton |
| TE60X160SOWB | TissueStor® Tissue Freezing Bag with Overwrap Bag | 60 x 160 mm | 100 x 180 mm | 24 /case | 120 /carton |
| TE90X105SOWB | TissueStor® Tissue Freezing Bag with Overwrap Bag | 90 x 105 mm | 100 x 180 mm | 24 /case | 120 /carton |
| TE90X180SOWB | TissueStor® Tissue Freezing Bag with Overwrap Bag | 90 x 180 mm | 130 x 230 mm | 24 /case | 120 /carton |
| TE100X150SOWB | TissueStor® Tissue Freezing Bag with Overwrap Bag | 100 x 150 mm | 130 x 230 mm | 24 /case | 120 /carton |
| TE100X180SOWB | TissueStor® Tissue Freezing Bag with Overwrap Bag | 100 x 180 mm | 130 x 230 mm | 24 /case | 120 /carton |
| TE110x90SOWB | TissueStor® Tissue Freezing Bag with Overwrap Bag | 110 x 90 mm | 140 X 200 mm | 24 /case | 120 /carton |
| TE120x160SOWB | TissueStor® Tissue Freezing Bag with Overwrap Bag | 120 x 160 mm | 150 X 280 mm | 24 /case | 120 /carton |
| TE130X200SOWB | TissueStor® Tissue Freezing Bag with Overwrap Bag | 130 x 200 mm | 140 x 300 mm | 24 /case | 120 /carton |
| TE130X250SOWB | TissueStor® Tissue Freezing Bag with Overwrap Bag | 130 x 250 mm | 160 x 380 mm | 24 /case | 120 /carton |
| TE135X105SOWB | TissueStor® Tissue Freezing Bag with Overwrap Bag | 135 x 105 mm | 140 x 200 mm | 24 /case | 120 /carton |
| TE135X200SOWB | TissueStor® Tissue Freezing Bag with Overwrap Bag | 135 x 200 mm | 140 x 300 mm | 24 /case | 120 /carton |
| TE135X300SOWB | TissueStor® Tissue Freezing Bag with Overwrap Bag | 135 x 300 mm | 200 x 380 mm | 24 /case | 120 /carton |
| TE140X200SOWB | TissueStor® Tissue Freezing Bag with Overwrap Bag | 140 x 200 mm | 200 x 380 mm | 24 /case | 120 /carton |
| TE140X300SOWB | TissueStor® Tissue Freezing Bag with Overwrap Bag | 140 x 300 mm | 200 x 380 mm | 24 /case | 120 /carton |
| TE150X275SOWB | TissueStor® Tissue Freezing Bag with Overwrap Bag | 150 x 275 mm | 180 x 420 mm | 24 /case | 120 /carton |
| TE180X320SOWB | TissueStor® Tissue Freezing Bag with Overwrap Bag | 180 x 320 mm | 220 x 450 mm | 24 /case | 120 /carton |
| TE200X150SOWB | TissueStor® Tissue Freezing Bag with Overwrap Bag | 200 x 150 mm | 230 x 180 mm | 24 /case | 120 /carton |
| TE200X380SOWB | TissueStor® Tissue Freezing Bag with Overwrap Bag | 200 x 380 mm | 250 x 420 mm | 24 /case | 120 /carton |
| TE210X310SOWB | TissueStor® Tissue Freezing Bag with Overwrap Bag | 210 x 310 mm | 250 x 420 mm | 24 /case | 120 /carton |
| TE220X180SOWB | TissueStor® Tissue Freezing Bag with Overwrap Bag | 220 x 180 mm | 250 x 300 mm | 24 /case | 120 /carton |
| TE250X420SOWB | TissueStor® Tissue Freezing Bag with Overwrap Bag | 250 x 420 mm | 300 x 500 mm | 24 /case | 120 /carton |
| TE300X150SOWB | TissueStor® Tissue Freezing Bag with Overwrap Bag | 300 x 150 mm | 330 x 180 mm | 24 /case | 120 /carton |
| TE300X500SOWB | TissueStor® Tissue Freezing Bag with Overwrap Bag | 300 x 500 mm | 330 x 550 mm | 24 /case | 120 /carton |
| TE750X150SOWB | TissueStor® Tissue Freezing Bag with Overwrap Bag | 750 x 150 mm | 780 x 180 mm | 24 /case | 120 /carton |

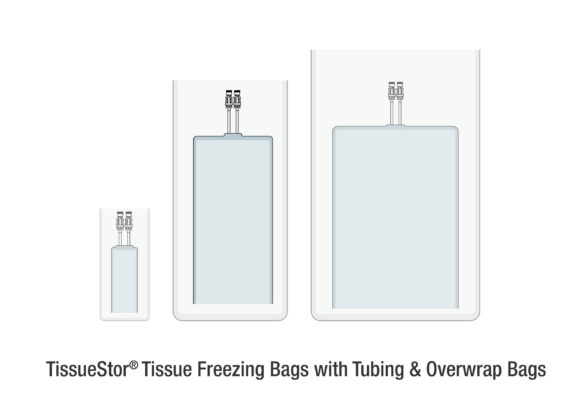

TissueStor® Tissue Freezing Bags with Tubing and CellStor® Overwrap Bag
| Part Number | Description | TissueStor Width x Length (mm) | Overwrap Width x Length (mm) | Primary Packing | Master Packing |
|---|---|---|---|---|---|
| TE30X80STOWB | TissueStor® Tissue Freezing Bag with Tubing & Overwrap | 30 x 80 mm | 40 x 90 mm | 24 /case | 120 /carton |
| TE30X90STOWB | TissueStor® Tissue Freezing Bag with Tubing & Overwrap | 30 x 90 mm | 40 x 105 mm | 24 /case | 120 /carton |
| TE30X105STOWB | TissueStor® Tissue Freezing Bag with Tubing & Overwrap | 30 x 105 mm | 60 x 160 mm | 24 /case | 120 /carton |
| TE40X105STOWB | TissueStor® Tissue Freezing Bag with Tubing & Overwrap | 40 x 105 mm | 60 x 160 mm | 24 /case | 120 /carton |
| TE60X105STOWB | TissueStor® Tissue Freezing Bag with Tubing & Overwrap | 60 x 105 mm | 100 x 180 mm | 24 /case | 120 /carton |
| TE60X120STOWB | TissueStor® Tissue Freezing Bag with Tubing & Overwrap | 60 x 120 mm | 100 x 180 mm | 24 /case | 120 /carton |
| TE60X160STOWB | TissueStor® Tissue Freezing Bag with Tubing & Overwrap | 60 x 160 mm | 100 x 180 mm | 24 /case | 120 /carton |
| TE90X105STOWB | TissueStor® Tissue Freezing Bag with Tubing & Overwrap | 90 x 105 mm | 100 x 180 mm | 24 /case | 120 /carton |
| TE90X180STOWB | TissueStor® Tissue Freezing Bag with Tubing & Overwrap | 90 x 180 mm | 130 x 230 mm | 24 /case | 120 /carton |
| TE100X150STOWB | TissueStor® Tissue Freezing Bag with Tubing & Overwrap | 100 x 150 mm | 130 x 230 mm | 24 /case | 120 /carton |
| TE100X180STOWB | TissueStor® Tissue Freezing Bag with Tubing & Overwrap | 100 x 180 mm | 130 x 230 mm | 24 /case | 120 /carton |
| TE110x90STOWB | TissueStor® Tissue Freezing Bag with Tubing & Overwrap | 110 x 90 mm | 140 X 200 mm | 24 /case | 120 /carton |
| TE120x160STOWB | TissueStor® Tissue Freezing Bag with Tubing & Overwrap | 120 x 160 mm | 150 X 280 mm | 24 /case | 120 /carton |
| TE130X200STOWB | TissueStor® Tissue Freezing Bag with Tubing & Overwrap | 130 x 200 mm | 140 x 300 mm | 24 /case | 120 /carton |
| TE130X250STOWB | TissueStor® Tissue Freezing Bag with Tubing & Overwrap | 130 x 250 mm | 160 x 380 mm | 24 /case | 120 /carton |
| TE135X105STOWB | TissueStor® Tissue Freezing Bag with Tubing & Overwrap | 135 x 105 mm | 140 x 200 mm | 24 /case | 120 /carton |
| TE135X200STOWB | TissueStor® Tissue Freezing Bag with Tubing & Overwrap | 135 x 200 mm | 140 x 300 mm | 24 /case | 120 /carton |
| TE135X300STOWB | TissueStor® Tissue Freezing Bag with Tubing & Overwrap | 135 x 300 mm | 200 x 380 mm | 24 /case | 120 /carton |
| TE140X200STOWB | TissueStor® Tissue Freezing Bag with Tubing & Overwrap | 140 x 200 mm | 200 x 380 mm | 24 /case | 120 /carton |
| TE140X300STOWB | TissueStor® Tissue Freezing Bag with Tubing & Overwrap | 140 x 300 mm | 200 x 380 mm | 24 /case | 120 /carton |
| TE150X275STOWB | TissueStor® Tissue Freezing Bag with Tubing & Overwrap | 150 x 275 mm | 180 x 420 mm | 24 /case | 120 /carton |
| TE180X320STOWB | TissueStor® Tissue Freezing Bag with Tubing & Overwrap | 180 x 320 mm | 220 x 450 mm | 24 /case | 120 /carton |
| TE200X150STOWB | TissueStor® Tissue Freezing Bag with Tubing & Overwrap | 200 x 150 mm | 230 x 180 mm | 24 /case | 120 /carton |
| TE200X380STOWB | TissueStor® Tissue Freezing Bag with Tubing & Overwrap | 200 x 380 mm | 250 x 420 mm | 24 /case | 120 /carton |
| TE210X310STOWB | TissueStor® Tissue Freezing Bag with Tubing & Overwrap | 210 x 310 mm | 250 x 420 mm | 24 /case | 120 /carton |
| TE220X180STOWB | TissueStor® Tissue Freezing Bag with Tubing & Overwrap | 220 x 180 mm | 250 x 300 mm | 24 /case | 120 /carton |
| TE250X420STOWB | TissueStor® Tissue Freezing Bag with Tubing & Overwrap | 250 x 420 mm | 300 x 500 mm | 24 /case | 120 /carton |
| TE300X150STOWB | TissueStor® Tissue Freezing Bag with Tubing & Overwrap | 300 x 150 mm | 330 x 180 mm | 24 /case | 120 /carton |
| TE300X500STOWB | TissueStor® Tissue Freezing Bag with Tubing & Overwrap | 300 x 500 mm | 330 x 550 mm | 24 /case | 120 /carton |
| TE750X150STOWB | TissueStor® Tissue Freezing Bag with Tubing & Overwrap | 750 x 150 mm | 780 x 180 mm | 24 /case | 120 /carton |
Packaging:
Each product is packed Individually in Tyvek Pouch.
Primary Box Dimension: 220 x 190 x 300 mm (8.66 x 7.48 x 11.81 in.)
Master Carton Dimension: 590 x 430 x 330 mm (23.23 x 16.93 x 12.99 in.)
