CellBios®
Overwrap Bag Sealer

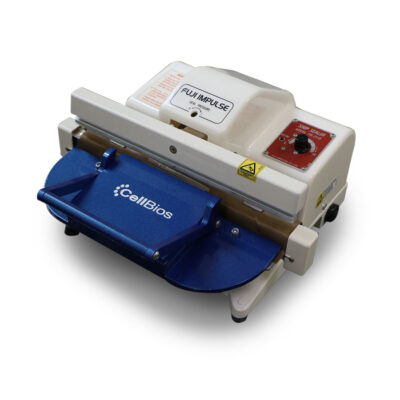

CellBios® Overwrap Bag Sealer

Overwrap Bag Sealer

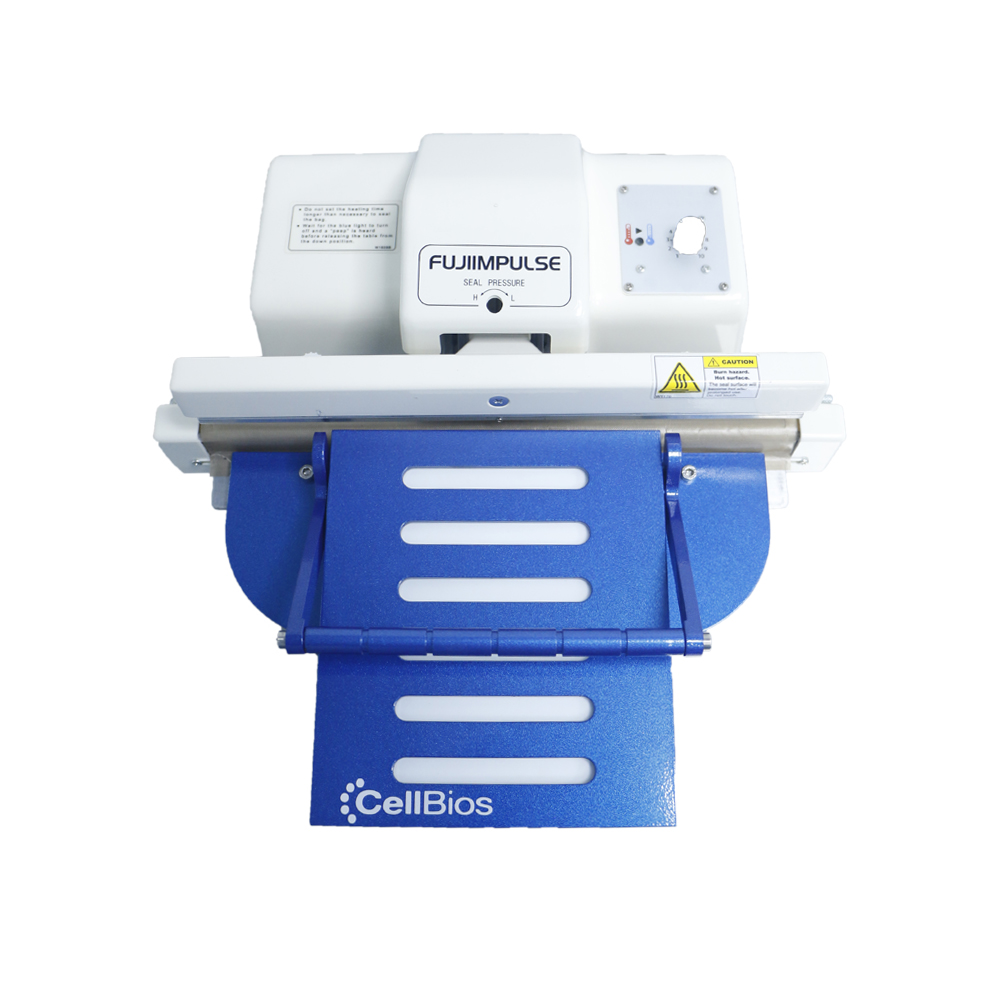

500mL_W

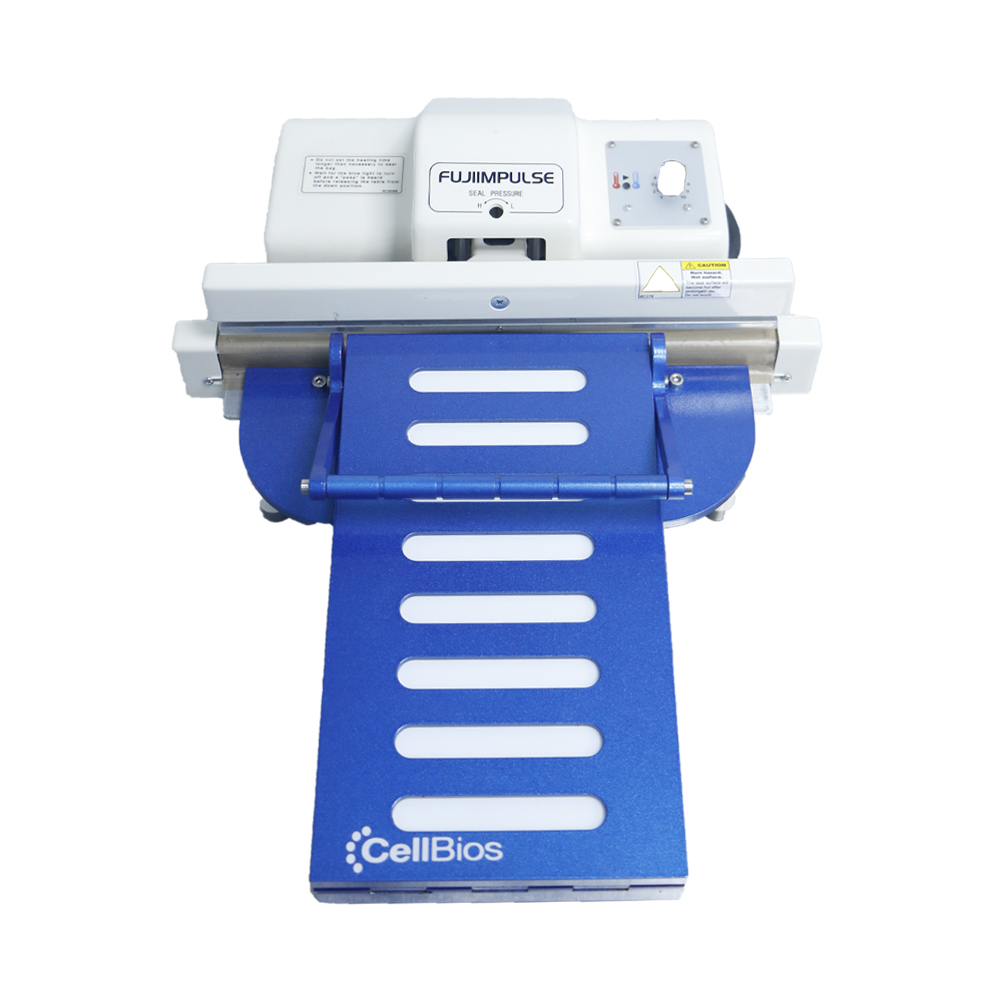

250mL_W

CellBios® Overwrap Sealer is a medical device used to heat seal the Fluorinated Ethylene Propylene (FEP), Ethyl Vinyl Acetate (EVA) overwrap bags and other thermoplastic materials. The device ensures uniform sealing and also can join two similar or disimilar materials together.

Specification

DescriptionDetails
Power SourceAC 220V
Power Consumption500 W
Seal Area Width-5 mm x Length-300 mm
Dimension 363 W x 376 L x 198 H in mm
Weight 5.8 Kg
Zig Dimenstion126 mm x 88 mm (25mL)
140 mm x 200 mm (250mL)
140 mm x 300 mm (500mL)

Features

Adjustable Dwell Timer
Electronic timer to adjust dwell times, matching material type and thickness.

Easy, Ergonomic User-Friendly Design
Only a light pressure is all it takes for a powerful and optimum sealing.

Consistent Sealing Quality
Adjustable sealing pressure and electronic timer control to provide uniform sealing.

Cost Effective
Maintenance-friendly functions to please facility maintenance personnel.

Safety
Sensor to avoid the possible finger pinch or burn during the sealing process

Impulse Sealer
Ready for use as soon as the power is turned on.

Ordering Information

Part No.Description Zig DimensionCompatible Overwrap BagsCompatible Freezing Bags
OWS315CB-01Overwrap Sealer with 25mL Zig126 x 88 (mm)EOW30X80S, EOW30X90S, EOW30X105S, EOW40X105S, EOW90X105S, EOW60X120S1 mL, 2 mL, 3 mL, 5 mL, 6 mL, 7 mL, 10 mL,12 mL, 15 mL, 20 mL, 25 mL, 2x5 mL, 2x10 mL, 2x12.5 mL, 5x1 mL, 5x3 mL
OWS315CB-02Overwrap Sealer with 250mL Zig140 x 200 (mm)EOW60X160S, EOW135X105S, EOW100X180S, EOW130X200S, EOW135X200S, EOW140X200S20 mL, 25 mL, 3x5 mL, 3x10mL, 4x6 mL, 4x5 mL, 5x5 mL, 5x6mL, 30 mL, 4x10 mL, 50 mL, 150 mL,
250 mL, LF50 mL, LF150 mL, LF250 mL
OWS315CB-03Overwrap Sealer with 500mL Zig140 x 300 (mm)EOW135X300S, EOW140X300S500 mL, 750 mL, LF500 mL, LF750 mL
